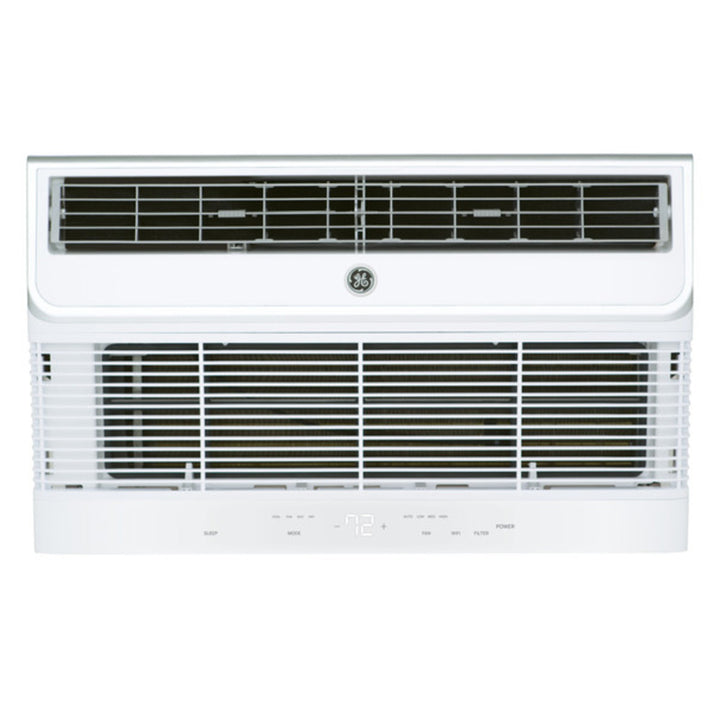

The GE AJCM12DWJ is a high-mount, built-in thru-the-wall smart air conditioner designed for efficient cooling and heating. With a cooling capacity of 12,000 BTU and a 10.5 EER, it provides effective climate control while operating with R32 refrigerant. The unit features a 10.5 kW electric heat kit for supplemental heating, and its dehumidification capacity is 3.4 pints per hour. It includes a 6-way louver style for enhanced airflow, with 3 cooling fan speeds and 3 fan-only speeds, delivering airflow up to 270 CFM on high. The unit offers WiFi connectivity, allowing control via Amazon Alexa or Google Home, along with an electronic digital thermostat and a filter reminder function for ease of maintenance. With a sleek soft gray finish, the unit's slide-in chassis design ensures a seamless installation. It operates on 230/208V power and comes with a tandem/right-angle LCDI plug for safety. The air conditioner is equipped with an energy saver mode, and it has a CEER rating of 10.5. It has a net weight of 84 lbs and measures 26” W x 22” D x 16” H, making it a reliable, space-saving solution for cooling needs.

Features:

• Built-In, Thru-the-Wall Unit (High Mount): Engineered for permanent installation in an exterior wall, the high-mount design allows a discreet, integrated look that maximizes interior space.

• Color Appearance: The Soft Gray color gives a modern neutral finish that complements a variety of décor styles.

• Built-In WiFi: Users can control the unit remotely via the SmartHQ™ app.

• Voice Integration: It is compatible with Amazon Alexa and Google Home for hands-free control.

• Electronic Touch Controls: Provide an intuitive, responsive interface for adjusting settings.

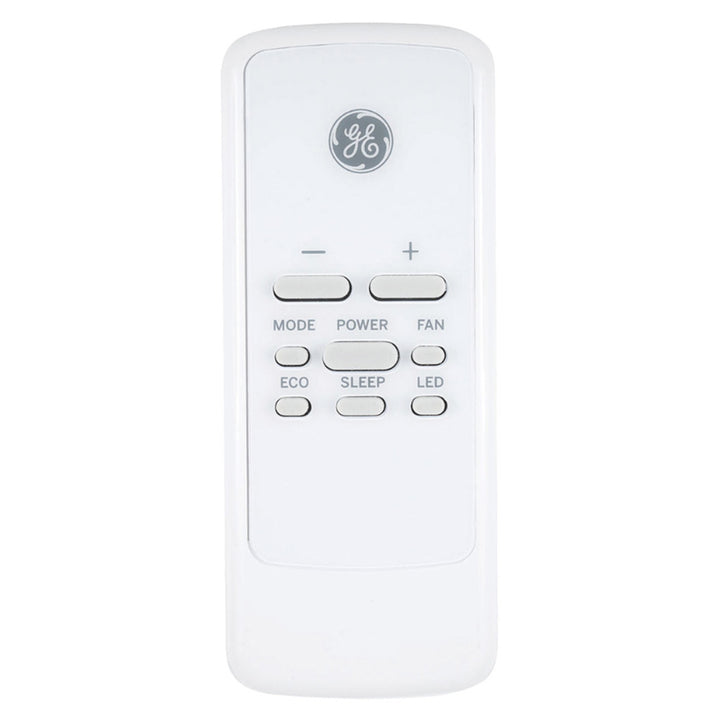

• Remote Control Included: Operate the unit conveniently from anywhere in the room.

• Cooling Capacity: Maximum 12,000 BTU/hr and Minimum 11,700 BTU/hr ensures the unit maintains consistent performance even with minor fluctuations in conditions.

• EER: 10.5 EER (BTUH per Watt) CEER of 10.5, indicates high energy efficiency to help reduce electricity costs.

• Refrigerant: It uses R32 which is a next-generation refrigerant with improved efficiency and a lower global warming potential compared to older alternatives.

• Dehumidification: At 3.4 pints per hour becomes effective moisture removal improves indoor comfort during humid conditions.

• Electric Heat Kit: 10.5 kW Electric Heat Kit (optional/integrated) provides supplemental heating when needed. Although the unit’s primary mode is cooling (Unit Type: Cool Only), the integrated heat kit can offer additional warmth during colder conditions.

• Over/Under Configuration: It is designed to direct conditioned air both upward and downward for even room temperature distribution.

• Multiple Fan Speed Settings: Cooling airflow options of 270/250/230 CFM and fan-only speeds of 260/240/220 CFM allow you to customize air delivery based on comfort and noise preferences.

• 6-Way Directional Louvers: Adjustable louvers let you precisely direct airflow where it’s needed most.

• Smart Fan Switch & Energy Saver: Automatically adjusts fan operation for optimum energy use and comfort, and includes a filter reminder function to ensure clean, efficient airflow.

• Electronic Digital Touch Controls: Easily set and adjust temperature (within a range of 60°F to 85°F), fan speeds, and operating modes.

• Remote Control & Smart Features: Remote Control Included (with batteries) enables convenient, room-wide operation.

• Built-In WiFi Connectivity: Connects to the SmartHQ™ app for remote monitoring, scheduling, and control.

• Voice Assistant Integration: Use Amazon Alexa or Google Home to control the unit via simple voice commands.

• Slide-In Design: Simplifies installation into a pre-framed wall sleeve and allows easy removal for routine maintenance (such as filter cleaning).

• High Mount Thru-the-Wall Installation: It ensures a secure, flush fit within the wall while preserving interior aesthetics.

• Rigid Frame, Washable Filter: It is designed for longevity and ease of cleaning, maintaining optimal airflow and indoor air quality.

• Optional Grill Compatibility: It supports optional front grills (RAG13, RAG13A, or RAG14E) for a customized look or added protection.

• Outdoor Vent/Exhaust: It ensures that hot air is effectively vented to the outdoors for improved system efficiency.

• Voltage/Hertz/Phase: At 230/208 V / 60 Hz / Single Phase, it is designed to operate efficiently within this voltage range.

• Plug Type: Tandem/Right Angle/LCDI offers flexible connection options for a neat, secure power hookup.

• Cord Length: 68 inches cord provides ample length for a variety of installation setups.

• Energy Efficiency: The high CEER rating of 10.5 underscores the unit's energy-saving design during cooling operation.

• Depth to Louvers: 5" depth ensures optimal placement for air distribution.

• Net Weight:84 lbs weight makes it a robust yet manageable weight, indicating a durable build suited for long-term use.

• Overall Dimensions (Including the Sleeve): Width of 26", depth of 22", and height of 16" represent the total size of the installed unit with its wall sleeve. The sleeve is the built-in frame or trim that surrounds the air conditioner once it’s installed in the wall. It’s designed to create a finished, integrated look and may add an extra inch around the actual unit.

• Unit-Only Dimensions (Excluding the Sleeve): Width of 25", depth of 20", and height of 15" refer only to the actual air conditioner unit itself, not including the additional framing or trim (sleeve).
